MOTOmed Letto2 Leg Trainer

MOTOmed® letto2 Leg Trainer with Expandable Chassis

Product Code: B1-4005

The MOTOmed letto2 leg trainer with expandable chassis allows for early mobilisation of patients legs while they are in a lying position; in a hospital bed or therapy chair. It provides a means whereby people with little or no movement in their legs can regularly exercise in an active or passive mode. This type of exercise is known as ‘movement therapy’ and the concepts of this are incorporated into the design of the MOTOmed letto2 range. The MOTOmed letto2 provides a well-rounded therapy to patients in high dependency care units, other in-patient and out-patient settings, and during dialysis.

The MOTOmed letto2 is mobile thus allowing it to be moved directly to the patient. The spreadable chassis, height adjustment, and reach of the unit allows for easy adaption to high dependency beds, community beds, and therapy chairs. The central ground fixation allows for fast and stable positioning.

The MOTOmed letto2 leg trainer allows for movement in 3 different modes of exercise:

  • Passive training: where the user’s legs are moved by the electric motor
  • Assistive training: where the user may have limited muscle strength and the motor provides assistance to maintain rotational momentum
  • Active training: where the user is able to pedal without motor assistance against varying levels of resistance

Functions of the MOTOmed



Foot insertion aid

Position the foot shells to make it easier to get feet in and out allowing for more independent use.

Symmetry Training

SymmetryTraining is key when targeting a weaker side of the body during training. It gives visual feedback to the user on how much work each side of the body is doing, allowing the user to focus on working their weaker side more.

Movement Protector

Should muscle cramp or spasm during exercise the MovementProtector feature stops the pedal for a moment and then begin turning in the opposite direction to help relax the muscle.

Training Analysis

Each training session records data such as distance, time, symmetry, speed, and much more. Comparison allows for targeted exercise.

Key features of the MOTOmed® letto2 Leg Trainer

Wipeable safety foot shells with train care leg guides

Pedal radius 7.0 cm

Pneumatic height adjustment

Double castors allowing to be easily moved

Horizontally adjustable towards the patient

Rotating operating panel

Light, all metal,  but solid, stable construction

MOTOmed SmoothDriveSystem with gentle startup and rundown

MovementProtector & SpasmControl

Central brake pedal to stabilise unit during operation

Patient speed controller with emergency stop

Variable speed from 0 to 60 rpm (passive)

Adjustable therapy time from 0 to 120 minutes

Large colour screen with wipeable surface

Audible and visual prompts

Track distance, time, calories burnt, and much more

Symmetry training showing work rates for left or right side of body

Included as standard with this model

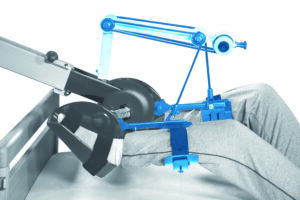

TrainCare Leg Guides

Adjustable leg guides that provide support under the patients calf

Disinfectable straps for infection control compliance

Disinfectant Style Foot Shells

Plastic coated foot shells with disinfectable straps for infection control compliance

Expandable Chassis

Easy and quick positioning of chassis to allow unit to fit under/around a bed or therapy chair

Chassis width can be adjusted from 45cm to 80cm

Foot Shell Reach Adjustment

The reach of the foot shells can be manually adjusted to suit the patient and the bed/therapy chair they are using.
